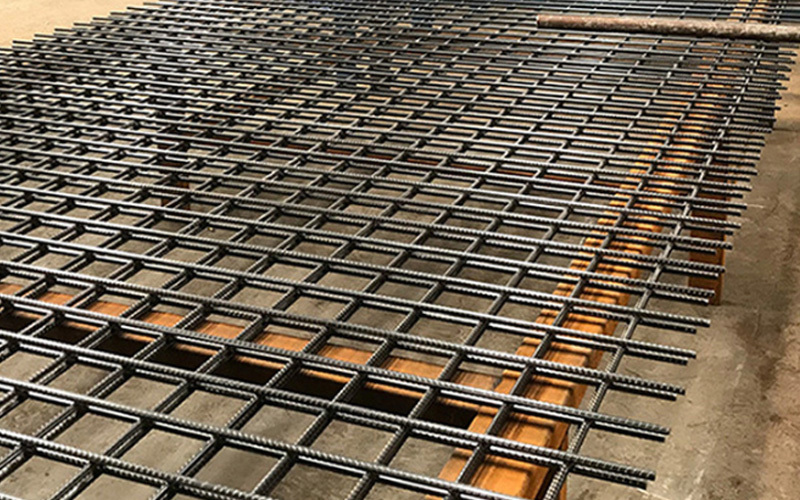

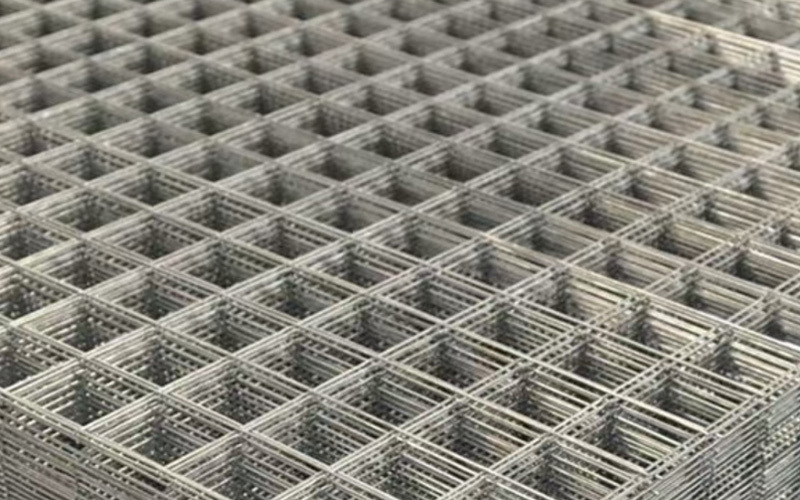

Steel coil mesh is a mesh made by crossing longitudinal and transverse steel bars through binding or welding, and is one of the "10 New Technologies Promoted and Applied in the Construction Industry in 2005" by the Ministry of Construction.

Quote →

75mm Steel Coil Mesh

Quote →

75mm Steel Coil Mesh

There are more than ten modern professional workshops such as precision casting, forging, welding, heat treatment, metal processing, assembly, etc., with CNC machining centers, CNC machine tools, imported die-casting machines, valve processing machines, automatic submerged arc welding machines, TPX611B digital display boring machines, More than 400 sets of advanced processing equipment such as automatic spraying lines and large-scale automatic valve testing test benches.

Category： Steel coil mesh

Inquiry

Product Details

Theoretical weight of steel mesh (KG)=length of steel bars used in steel mesh (M) * wire diameter (MM) * wire diameter (MM) * 0.00617 (0.616539kg/m for steel bars with a diameter of 10).

The application of steel mesh is in the fields of beams, columns, floors, roofs, walls, concrete pavements, bridge deck paving, airport runways, tunnel lining, box culverts, dock floors, prefabricated components, etc. of industrial and civil buildings.

Steel coil mesh can be divided into cold-rolled ribbed steel mesh, cold drawn round steel mesh, and hot-rolled ribbed steel mesh according to raw materials, among which cold-rolled ribbed steel mesh is the most widely used. Steel mesh is divided into two types based on the grade, diameter, length, and spacing of the steel bars: standardized steel mesh and customized steel mesh.

Steel coil mesh Series: Steel Welded Mesh, Building Welded Mesh, Ribbed Welded Mesh, Coal Mine Welded Mesh, Coal Mine Rolled Mesh Welded Mesh, Stainless Steel Welded Mesh, Decorative Mesh, Ribbed Steel Reinforcement, Hoop Reinforcement, Brick Strip Mesh, Welded Mesh, Geothermal Mesh, etc.

Elongation	δ10≧8%
Performance	Tensile strength Σb≧360Mpa
Design strength	Y≥360Mpa
Surface shape	Reticular
Supply status	Package in sections according to requirements or construction conditions
Production standards	GB/T1499.3-2002 BS4483:1998
Spacing	50 75 100 125 172 200 225 250 275 325 350 372 400 (mm) (100 * 100 is the most common)
